The double diaphragm system increases safety when sampling expensive or extremely hazardous gases. Should the primary diaphragm fail, the secondary diaphragm keeps the sample flow intact. The 1/8" NPT port connection allows the user to add a pressure gauge and/or leak detection system and alarm. The detection system monitors the diaphragm for failure analysis and assures system integrity until maintenance can be performed.

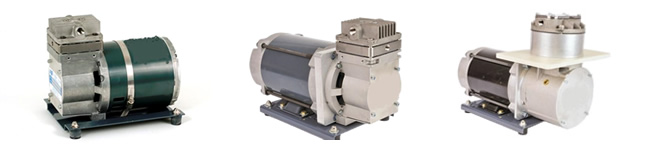

High seal application diaphragm pump:
We offer material of 316SS, Hast C, Teflon to promise safety and reliable in application.
According to real application, we offer it with flexibility for OEM and local site. Oil free, contamination free, no leakage.
The pump is the smallest pump offered providing exceptional quality, reliability and affordability.
Available with brush/ brushless DC/AC motor options. Maximum performance range: 0-142L/min£¨0-8.5 m³/h 0-29¡±Hg, and 0-75 PSIG (5.17bar).
Offer£º . expensive or extremely hazardous gases solution
Application: vacuum, transport, pressure
Offer£º
24hours continual running
High sealing performance-no interference risk
High corrosiveness resistance and Oxidation resistance-to sure accuracy and safety
Strong bearing over expected
No maintenance, low noise
360 degree installation
Offer 115V-60HZ/230V-50HZ/460V/12V-24V DC of power supplier
|
Pump head material
|
316SS
|
aluminum£¨Teflon coating£©
|
Hast C
|
|
Diaphragm
|
Dupont Teflon coating/EPDM base/ All Teflon
|
|
Motor
|
AC motor
|
Brushless motor
|
|
voltage
|
115V-60HZ(EX-Proof)
|
230V-50HZ
|
460V
|
|
Optional
|
Double diaphragm
|
|
