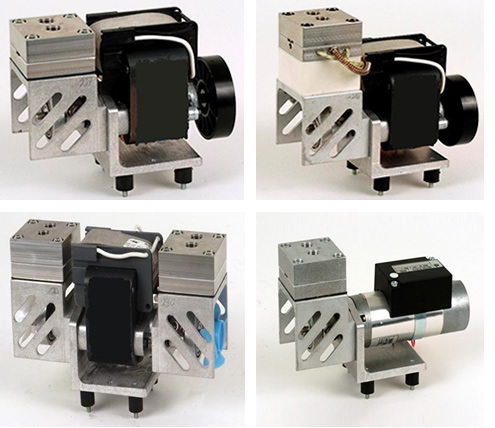

Measuring online diaphragm pump in desulphurization and denitration Application:
According to real application, we offer it with flexibility for OEM and local site. Oil free, contamination free, no leakage.
The pump is the smallest pump offered providing exceptional quality, reliability and affordability.
Available with brush/ brushless DC/AC motor options. Maximum performance range: 0-13 LPM, 0-28¡±Hg, and 0-30 PSIG(2bar).
Offer£º High temperature gas solution.
Application: vacuum, transport, pressure
Offer£º
CE certification
2 weeks Lead time
24hours continual running
High sealing performance-no interference risk
High corrosiveness resistance and Oxidation resistance-to sure accuracy and safety
12V/24V brushless motor-30000h long life time
Strong bearing over expected
No maintenance, low noise
no leakage risk when tube was blocked.
360 degree installation
Ambient temperature up to 40 degree Celsius
Medium temperature up to 205 degree Celsius
Offer 115V-60HZ/230V-50HZ of power supplier
metallic pump head£¬no plastic Spiral crack risk
standard£º High temperature resistance and heating
|
Pump head material
|
316SS
|
aluminum£¨Teflon coating£©
|
All Teflon
|
|
Diaphragm
|
Dupont Teflon coating/EPDM base
|
All Teflon
|
|
Motor
|
Brushless motor
|
AC motor
|
DC motor
|
|
voltage
|
115V-60HZ AC
|
12V/24V DC
|
230V-50HZ AC
|
|
performance
|
High temperature Resistance
|
Heating
|
|
